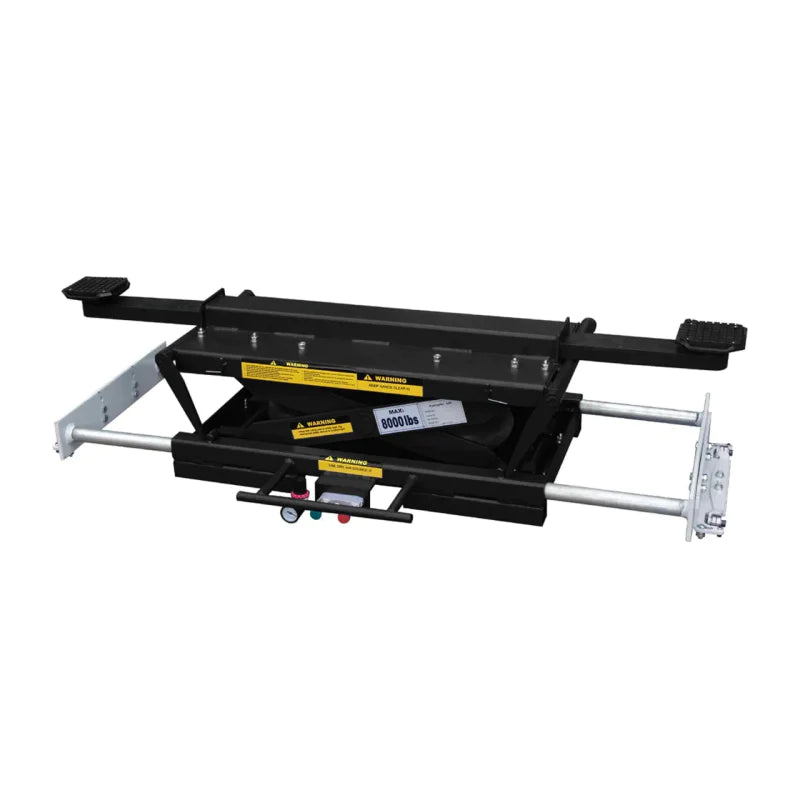

8,000 Lb Kernel RAJ-8K Rolling Bridge Air Jack

Description

The RAJ-8K rolling air jack is a high quality, scissor type, air bag jack that's capable of an 8,000-pound capacity. It features an air/hydraulic operation for easy use along with stackable pad & height adapters. With a universal roller design you'll be able to slide this jack into the required position with no problems. Buy yours today!

• Dual air bags
• Telescoping support arms
• Universal roller body design
• Dual protective scissor skirts
• Two locking height positions
• Adjustable pressure regulator
• Air hydraulic operation system
• 1 pair of rubber height adapters
• Stackable pad & height adapters
• Guide wheels with adjustable height
• Spring loaded precision roller bearing

Specs

• 10-20 CFM
• 100-125 PSI
• Lift capacity of 8,000 lbs.
• Low mount body bracket height 1"
• High mount body bracket height 1"
• Rubber adapter height 1(5/16)" & 5" (1 pair)
• Lifting arms min 35(7/16)" / max 58" (pad center)
• Lifting height min 6(9/16)" / max 15" (pad adaptor only)
• Telescoping support arms min 38" / max 60" (Roller body wheel center)

• (MODEL CHOICES Available-Call us for more information)
• Low mount profile model
• Incorporates adjustable height brackets suitable for low mount jack rails to avoid high profile jacks from touching the ground when lift is fully lowered.
• High mount profile model
• Incorporates adjustable height brackets suitable for medium to high mount jack rails to avoid high profile jacks from touching the ground when lift is fully lowered.

RETURNS

• Our supplier does not accept returns on this item
• In event of warranty claim, replacement part(s) will be sent
