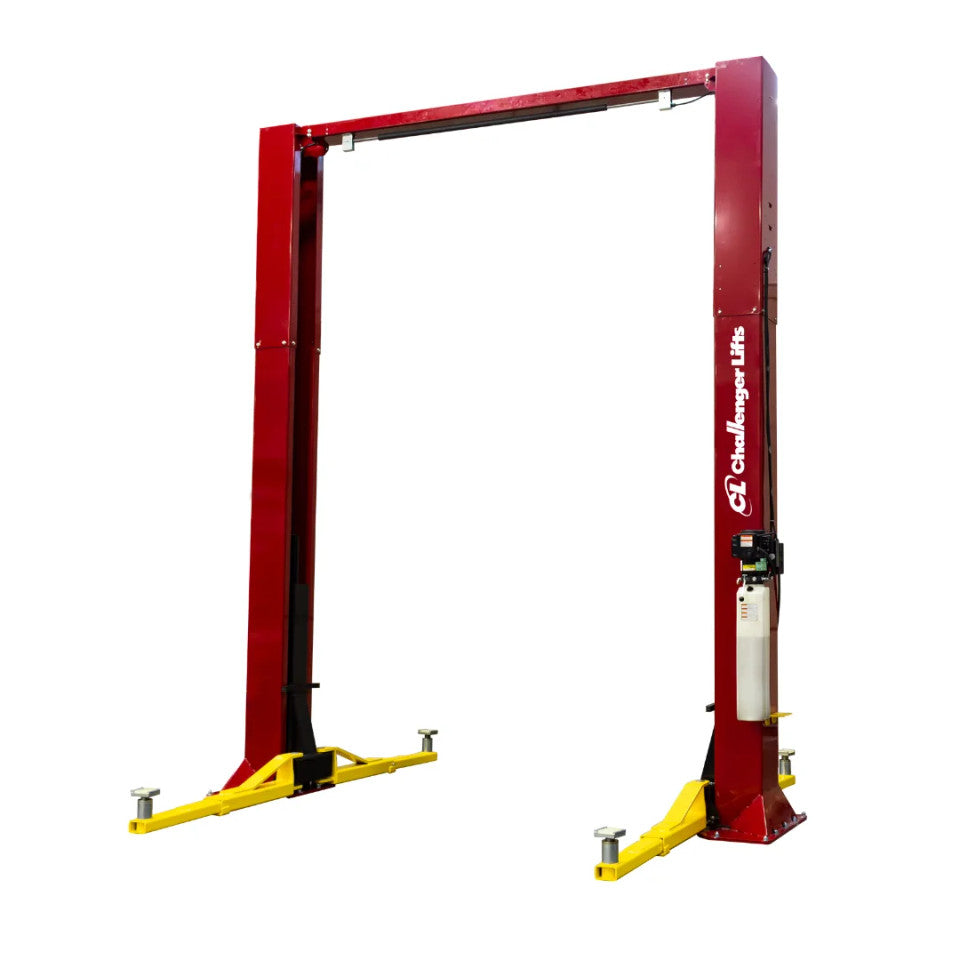

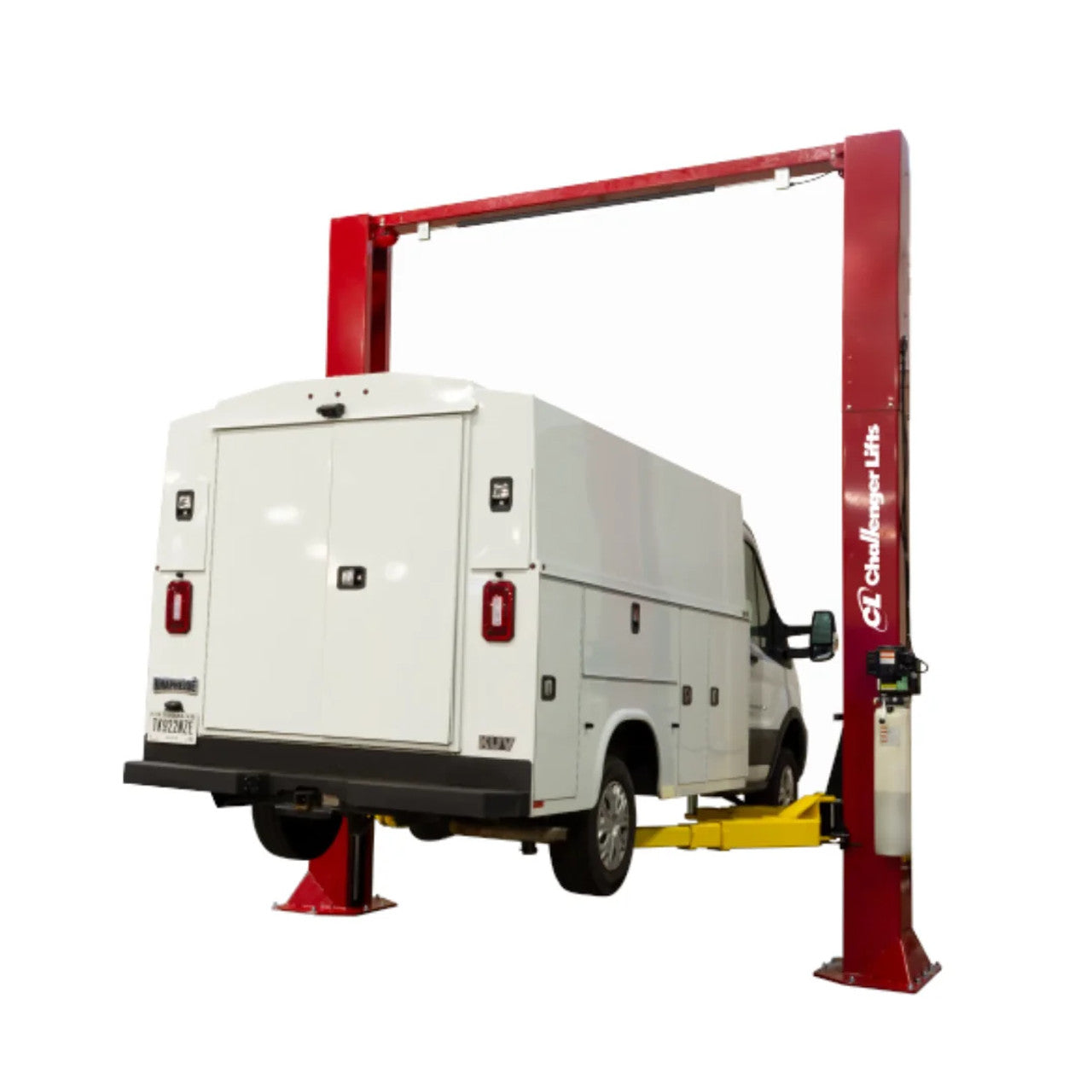

Challenger CL16 Heavy Duty 2 Post Clear-floor Lift ALI Certified

Description

The New Challenger CL16 16,000 Pound Heavy Duty 2 Post Lift! With a capacity of 16,000 pounds, you'll be able to lift everything from cars to tall, heavy trucks! Ready to tackle the heaviest vehicles in any fleet with it's oversized 5" diameter steel pullies and heavy duty 3/8" cable. Fully adjustable width and symmetrical design allows for easy access to the vehicle's interior. Installation is available in 1 of 3 height and width variations, making this one of our most versatile lifts. Stack adapters and organizer racks with hardware are included with the lift. One thing that sets this lift apart from competitors is the 4.5" tall footpad compared to the competition's 6" tall footpad making this lift capable of going under compact cars. Equipped with a single-point air actuated lock release allowing technician to disengage both columns simultaneously. A 75" arm reach also offers asymmetric lifting on unibody vehicles. Innovative synchronizer cable system easily adjusts to any of the three available lift height options without extra parts or making the cable connection inaccessible. Available in red, blue, or black. To top all of this off, this lift is ALI CERTIFIED! Order yours today!

• ALI/ETL certified
• Heavy duty 3/8" cable
• 3 stage front and rear arms
• Heavy duty rubber screw pads
• Available in red, blue, or black
• Dual integrated rubber door guards
• Ideal auto light & heavy-duty trucks
• Innovative synchronizer cable system
• Oversized 5" diameter steel pully system
• 60" lifting carriage design increases lift life
• Can lift compact cars and tall, heavy trucks
• Includes 3" and 6" stack adapters and organizer rack
• Available in 3 different height and width variations
• Adjustable width and symmetrical design allow’s easy access to vehicle interior

Specs

CL16-0-3S Standard Height

• Rise time: 62 seconds
• Minimum rise height: 75.5"
• Minimum lift height: 4.75"
• Max load per arm: 4000 lbs.
• Lifting capacity: 16,000 lbs.
• Lift configuration: symmetric
• Air supply required: 90-120 psi
• Available colors: red, blue, black
• Arm configuration: 3-stage front/rear
• Motor/Voltage: 3HP, 1PH, 60Hz, 208/230v
• Overall height options: 162", 168", 174"
• Minimum/maximum arm reach: 36.625" - 75"
• Floor to overhead switch: 155", 161", 167"
• Distance between columns: 120", 126", 132"
• Screw pad height minimum/maximum: 4.75" - 6.5"
• Drive thru clearance: 104.25", 110.25", 116.25"
• Maximum rise height (with stack adapters): 81.5"
• Overall width options: 154.75", 160.75", 166.75"
• Minimum ceiling height required: 13'8", 14'2", 14'8"

CL16-2-3S Extended Height

• Rise time: 62 seconds
• Minimum rise height: 75.5"
• Minimum lift height: 4.75"
• Max load per arm: 4000 lbs.
• Lifting capacity: 16,000 lbs.
• Lift configuration: symmetric
• Air supply required: 90-120 psi
• Available colors: red, blue, black
• Arm configuration: 3-stage front/rear
• Motor/Voltage: 3HP, 1PH, 60Hz, 208/230v
• Overall height options: 186", 192", 198"
• Minimum/maximum arm reach: 36.625" - 75"
• Floor to overhead switch: 179", 185", 191"
• Distance between columns: 120", 126", 132"
• Screw pad height minimum/maximum: 4.75" - 6.5"
• Drive thru clearance: 104.25", 110.25", 116.25"
• Maximum rise height (with stack adapters): 81.5"
• Overall width options: 154.75", 160.75", 166.75"
• Minimum ceiling height required: 15'8", 16'2", 16'8"
