Challenger CLFP9 9K 2 Post Floorplate Lift

Challenger CLFP9 9K 2 Post Floorplate Lift

Regular price $6,549.99 USD
Regular price Sale price $6,549.99 USD
Sale Sold out

Description

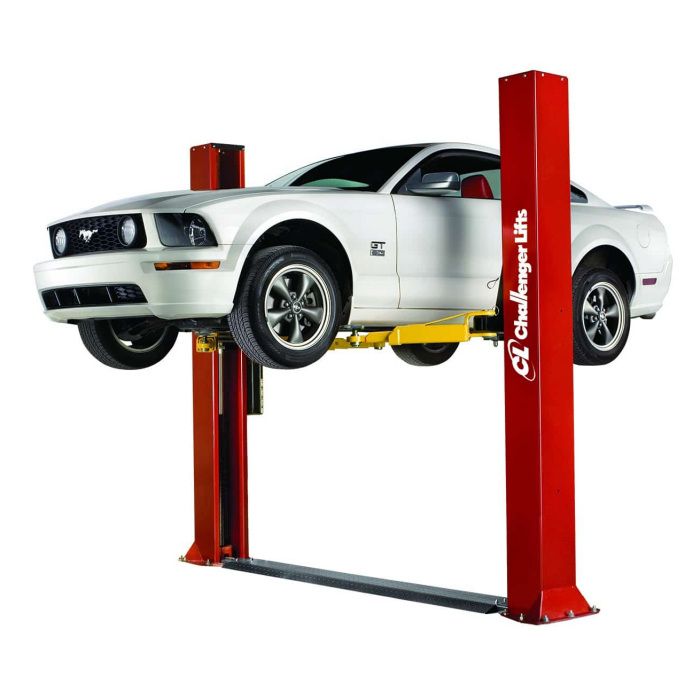

The Challenger CLFP9 2 Post Lift is a great addition to the home enthusiast garage as well as professional vehicle service shops, featuring a dual point mechanical pull-lock cable release system, low profile drive-over floor plating, double telescoping screw pads, and standard front and rear 3-stage arms for maximum arm sweep, retraction, and reach.  Order yours today!

  • Plated arm pins
  • Ideal for auto passenger cars

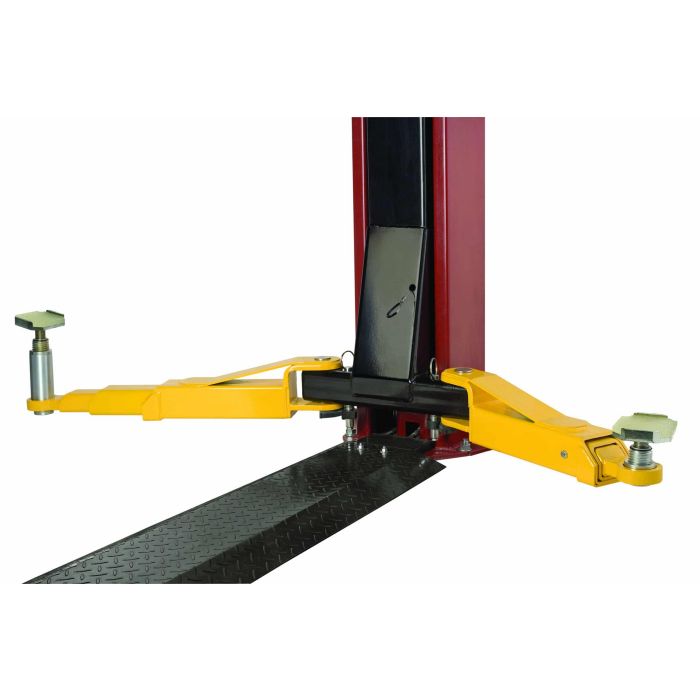

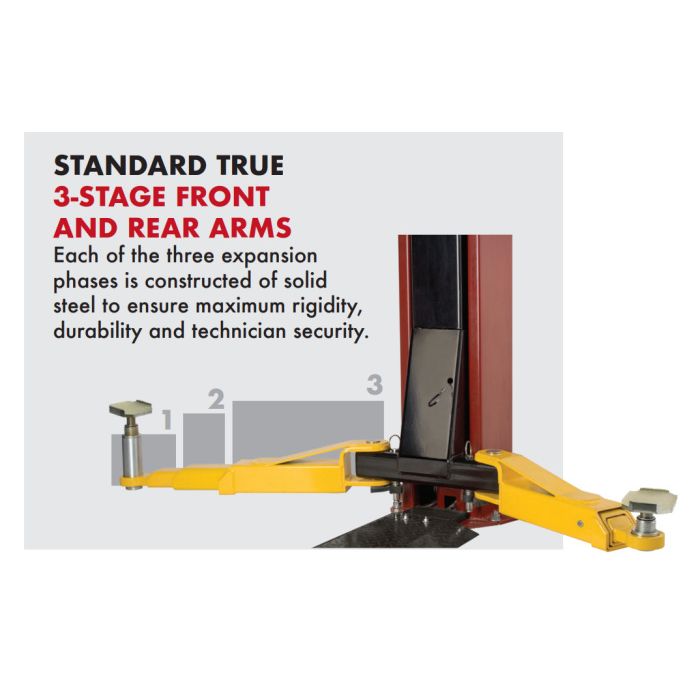

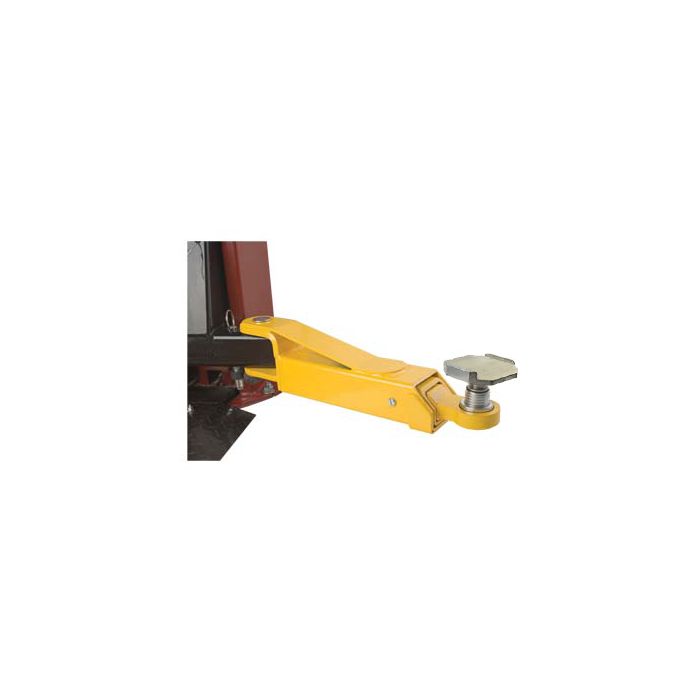

  • Front and rear 3-stage arms
  • Double telescoping screw pads
  • Low profile drive-over floor plate
  • Fully gusseted base plate design

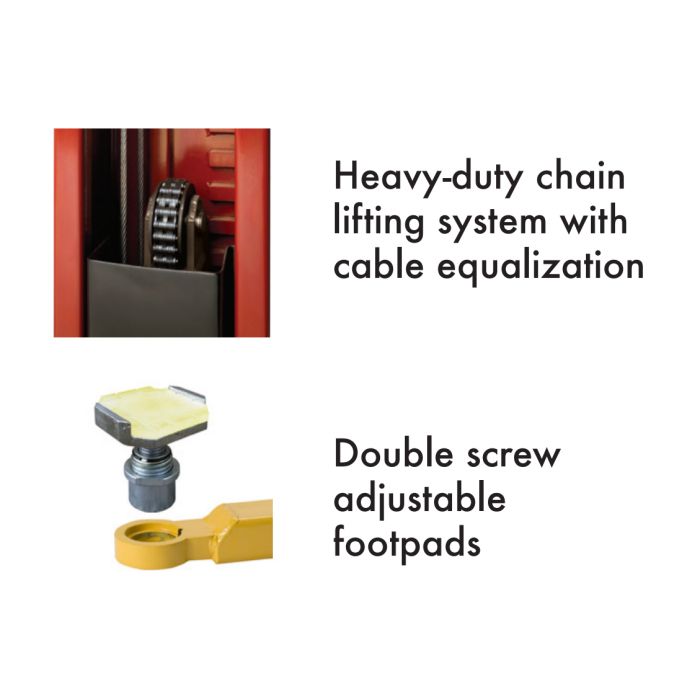

  • Heavy duty chain auto lift with cable equalization
  • Dual point mechanical pull-lock cable release system

Specs

  • Rise Height: 78-1/8"
  • Voltage: 208v - 230v
  • Lift Capacity: 9,000 lbs.
  • Column Height: 10' 7/8"
  • Inside of Columns: 109"
  • Overall Width: 11' 5-1/2"
  • Speed of Rise: 60 seconds
  • Max Load per Arm: 2,250 lbs.
  • Drive-Thru Clearance: 98-3/16"
  • Motor: 2HP, Single Phase, 60Hz
  • Screw Pad Height Adj: 4" / 5-7/8"
