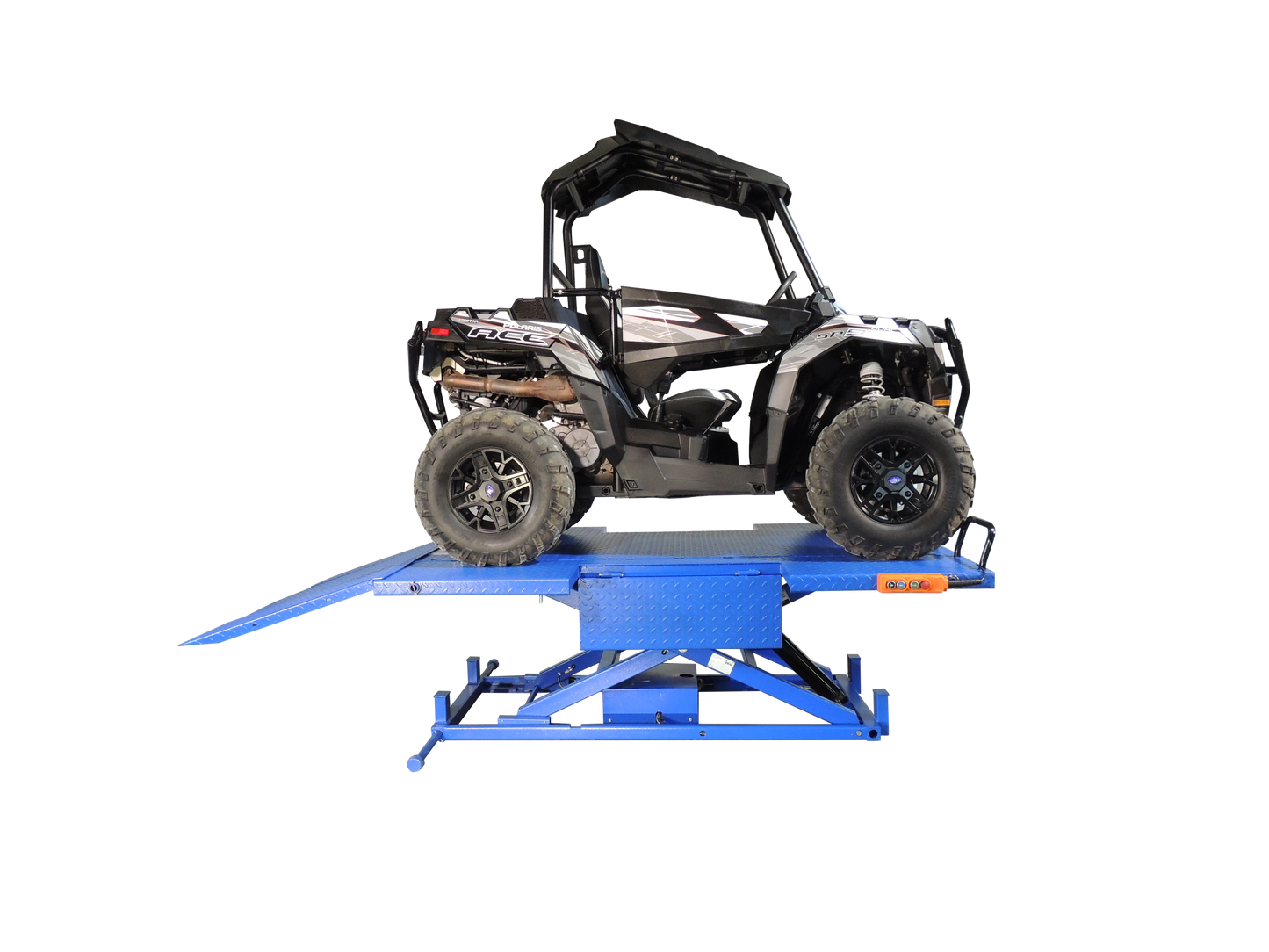

iDeal 2,600 lb Mobile UTV Lift

Description

The iDeal 2,600 lb. Mobile UTV Lift is a mobile "pallet jack" style low profile auto lift enhanced with UTV feet adapters.  Remove the side by side adapters from the lift, and it becomes a 6,000 lb. automotive lift. With its single point lock release, additional 2 sets of 4 height adapters, and ease of maneuverability, this lift will get the job done with a convenience that no other machine can match. Call for a ship quote today!

• Rolls under vehicle
• UTV feet adapters
• Powder coat paint finish
• Single point lock release
• Heavy duty 13" x 10" structural column
• 2 sets of 4 'drop-in' height adapters (2" and 4")
• Pallet jack style hydraulics to raise lift onto wheels
• Unique drive-over design easily positions lifting points
• 2,600 lb. lifting capacity when used with UTV adapters
• Ideal for auto passenger cars using included lifting pads
• 6,000 lb. lifting capacity when used without UTV adapters
• Improved 'double telescoping' screw pads with 2-3/4" adjustable height
• Durable 'chain-over' cylinder design uses a 3" x 36" cylinder & 846 leaf chain
• Improved 'Low Profile' design with less than 4" minimum height without ATV adapters installed

Specs

• Lift rise height: 72"
• Overall width: 45-3/16"
• Overall height: 102-3/8"
• Overall length: 101-9/16"
• Power: 110VAC, 20Amp, 1PH
• Drive-over frame base/ramp height: 3-15/16"
• Offside swing arms (min/max): 24-5/8" / 34"
• Swivel pad height (min/max): 3-7/16" / 6-5/16"
• Main side swing arms (min/max): 19-11/16" / 26"

RETURNS

• Our supplier does not accept returns on this item
• In event of warranty claim, replacement part(s) will be sent
