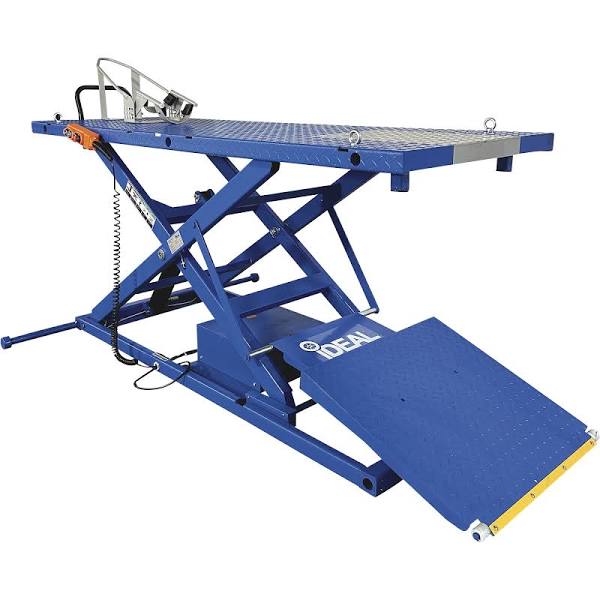

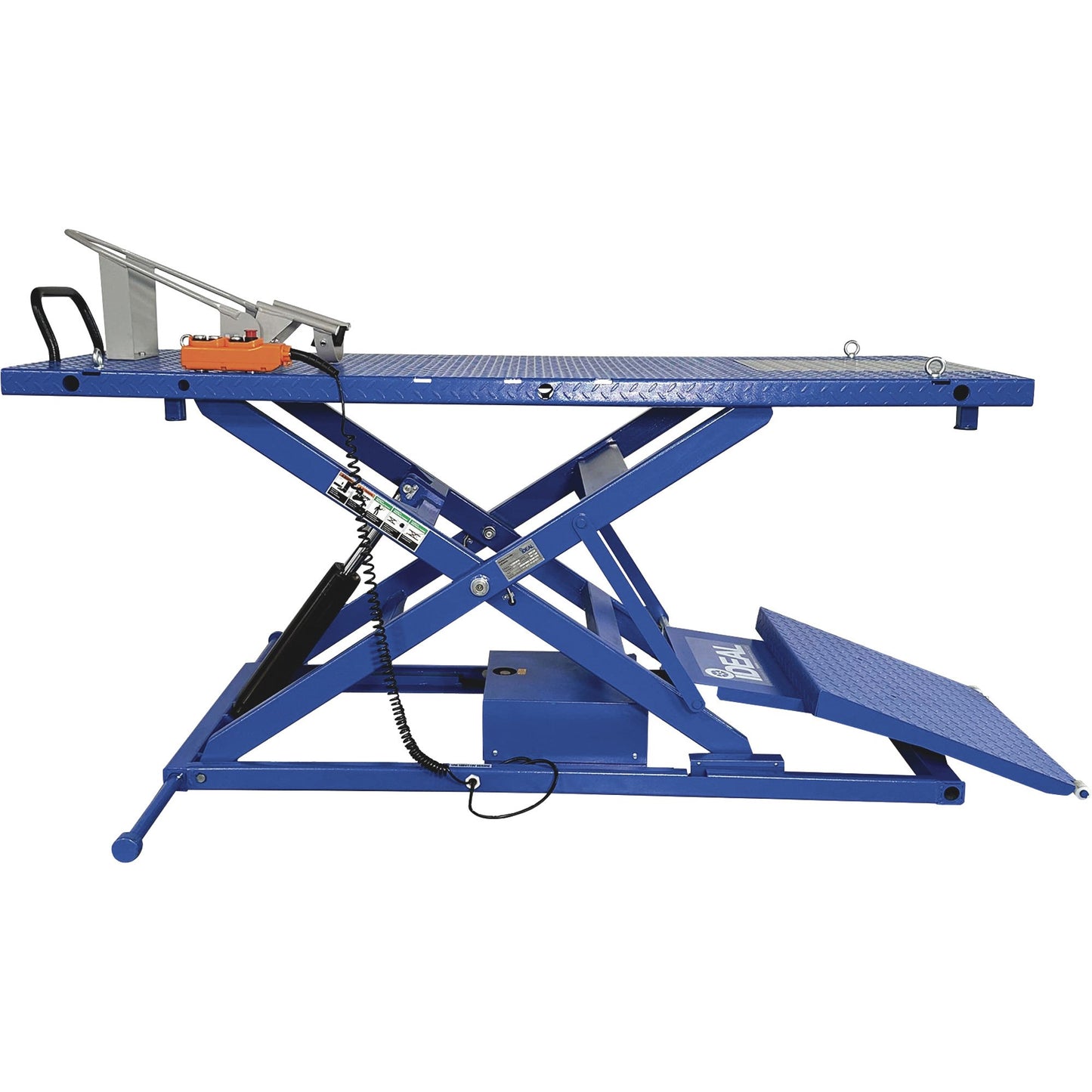

iDEAL 2200 lb Motorcycle Trike/ATV/UTV Lift Table

Description

Introducing the new iDEAL 2200 lb. Electric Motorcycle ATV/UTV/Trike Lift Table! Boasting a 2200 lb. weight capacity, this electric/hydraulic powered table lift includes a rear drop panel and a full width ramp. It features a magnetic lock release, a handheld remote-control pendant, 6 locking height positions, & multiple optional varieties to accommodate lifting trikes, ATVs, or Side by Side. Now includes an integrated motor & retractable ramp. An optional wheel vise and/or chock is also available. Order yours today!

• Wheel stop
• Stabilizer bar
• Full width ramp
• Rear drop panel
• Magnetic lock release
• 6 locking height positions
• Tie-down anchor eye bolts
• Handheld remote-control pendant

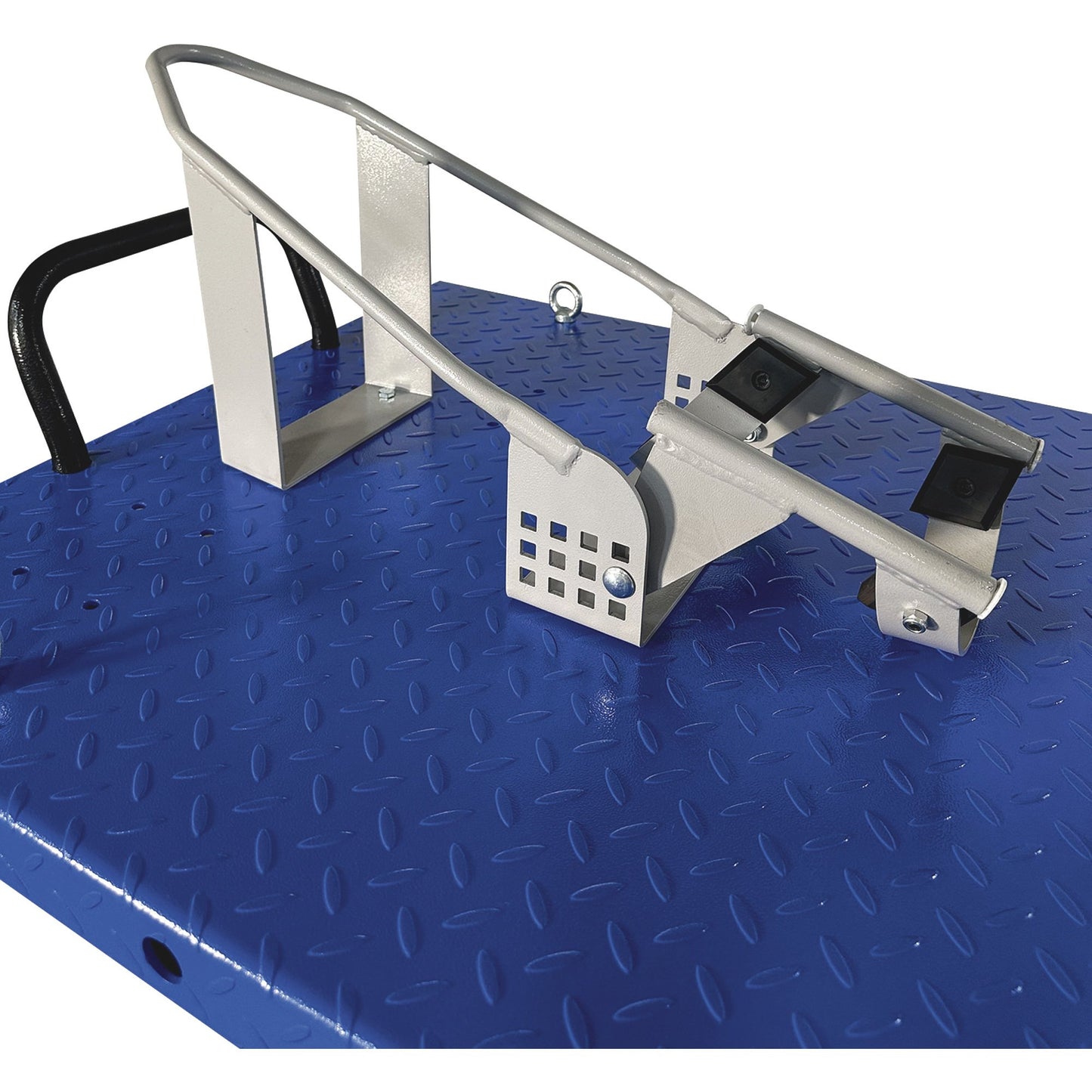

• Optional vise & chock is available
• Includes integrated motor & retractable ramp
• Platform designed to mount optional vise or chock
• Optional kits are available to lift Trikes, ATVs and UTVs
• 110V integrated electric/hydraulic power unit with cord and plug

Specs

APPROXIMATE LOCK HEIGHTS

• 1st lock 25-3/8”
• 2nd lock 30-5/8”
• 3rd lock 35”
• 4th lock 38-7/8”
• 5th lock 43-1/2”
• 6th lock 47-1/8”

MOTORCYCLE SPECS

• Min height: 7"
• Lifting height: 47.2"
• Capacity: 2,200 lbs.
• Ramp width: 28.75"
• Platform size: 88.6" x 31.5"
• Overall length w/ ramp: 121"
• Power: 110V-60Hz, 15AMP, 1Ph

TRIKE SPECS

• Min height: 7"
• Lifting height: 47.2"
• Capacity: 2,200 lbs.
• Platform size: 110.2" x 62.2"
• Overall length w/ ramp: 142.6"
• Power: 110V-60Hz, 15AMP, 1Ph
• Included front extension panel adds 21.6" L. (110.2" total length)

ATV SPECS

• Min height: 7"
• Lifting height: 47.2"
• Capacity: 2,200 lbs.
• ATV platform size: 88.6" x 50"
• Overall length w/ ramp: 121"
• Power: 110V-60Hz, 15AMP, 1Ph

UTV SPECS

• Min height: 7"
• Lifting height: 47.2"
• Capacity: 2,200 lbs.
• UTV platform size: 88.6" x 65"
• Overall length w/ ramp: 121"
• Power: 110V-60Hz, 15AMP, 1Ph
