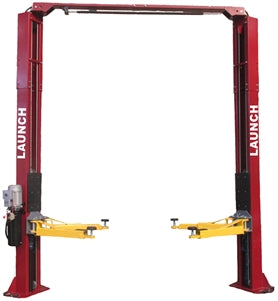

Launch 9K Asymmetric/Symmetric 2 Post Clearfloor Lift

Description

Introducing the economically high-quality Launch 9K Asymmetric/Symmetric 2 Post Lift! This 2 post lift features double telescoping screw pads used with rubber pads, an adjustable column width to provide an extra 6" of width adjustment, hose guards that protect hydraulic hoses from damage, rubber door guards that provide added security against door damage, and a heavy-duty arm restraint system that includes rugged steel gears, pins, and springs. Order yours today!

• Clear floor style
• Dual point lock release
• Ideal for auto passenger cars
• Hose guards protect hydraulic hose from damage
• Rubber door guards provide added security against door damage
• Adjustable column width provides an extra 6" of width adjustment
• Double telescoping screw pads used with rubber pads offer 2.5" adjustment
• Heavy-duty arm restraint system includes rugged steel gears, pins, and springs

Specs

• 9,000 lb. capacity
• Min pad height: 4"
• Max lift height:73"
• Overall height: 151"
• Cable diameter: 3/8"
• Lifting speed: 50 seconds
• Column size: 11.34" x 7.5"
• Max load per arm: 2,250 lb.
• Width between columns: 108"
• Column steel thickness: 6mm
• Carriage steel thickness: 6mm
• Arm steel thickness: 6mm, 8mm
• Arm reach (min/max): 31.5" - 7.5"
• Drive thru clearance (sym/asym): 98"/95"
• Power: 208-230 Volt / 60hz / single phase
• Overall width w/ power unit (sym/asym): 134"/140"

RETURNS

• Our supplier does not accept returns on this item
• In event of warranty claim, replacement part(s) will be sent
