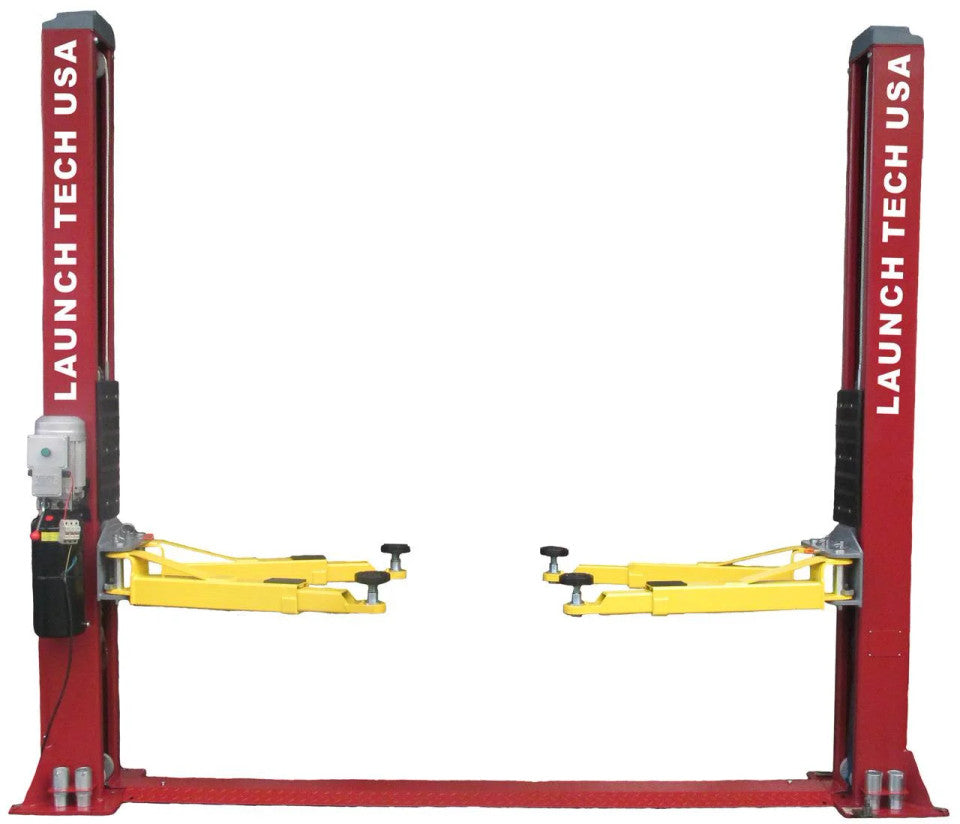

The economically high-quality Launch 9K Symmetric 2 Post Lift is now for sale! This 2-post lift features a dual point lock release, a floor plate to protect cables and hoses from damage, and rubber door guards that provide added security against door damage. Order yours today!
Dual point lock release
Ideal for auto passenger cars
Floor plate to cover hoses and cables

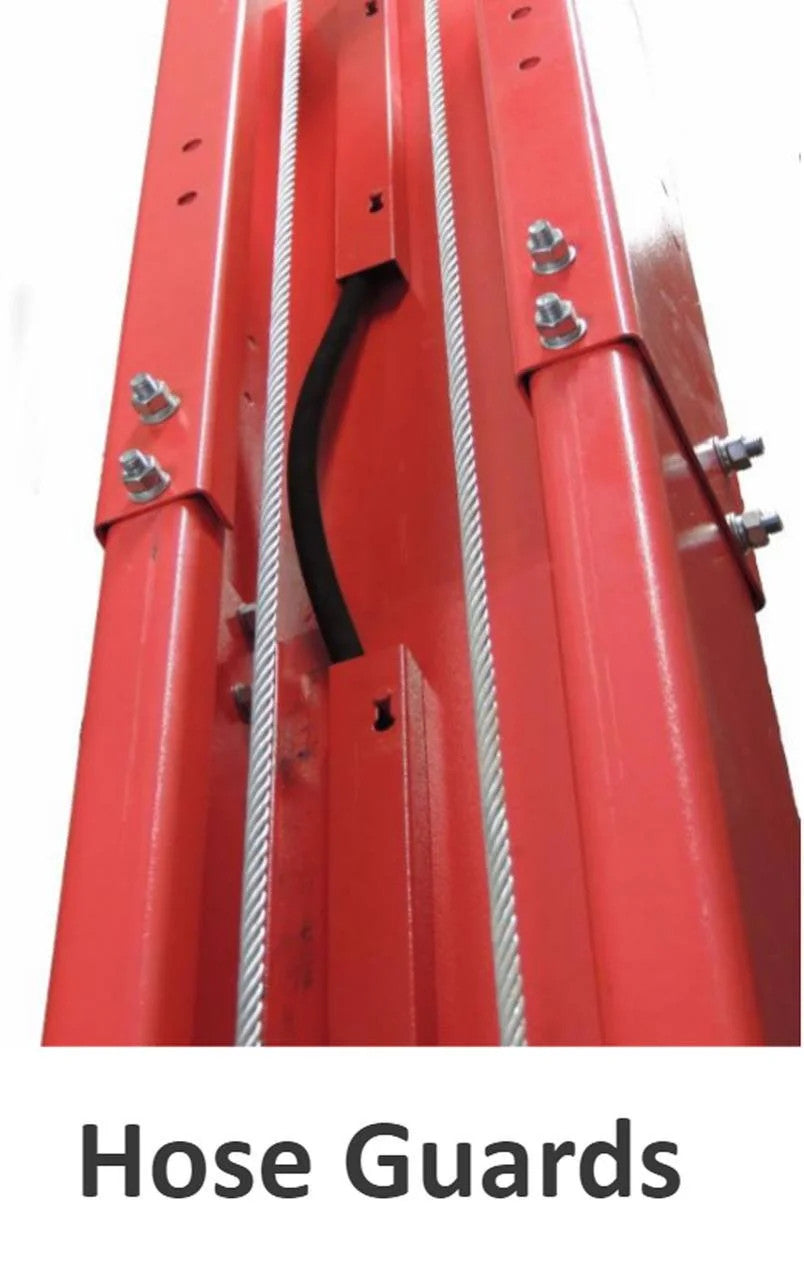

Hose guards protects hydraulic hoses from damage

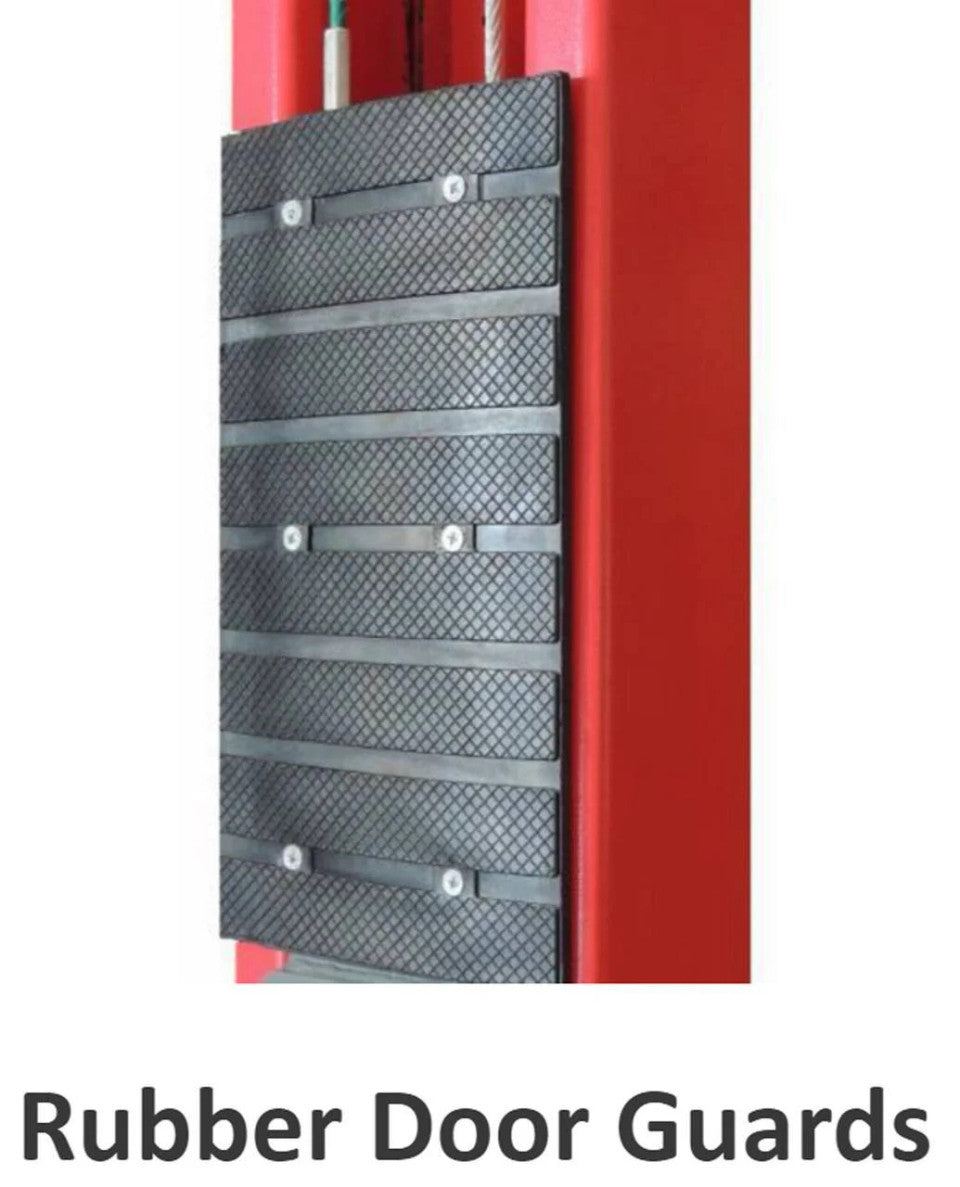

Rubber door guards provides added security against door damage

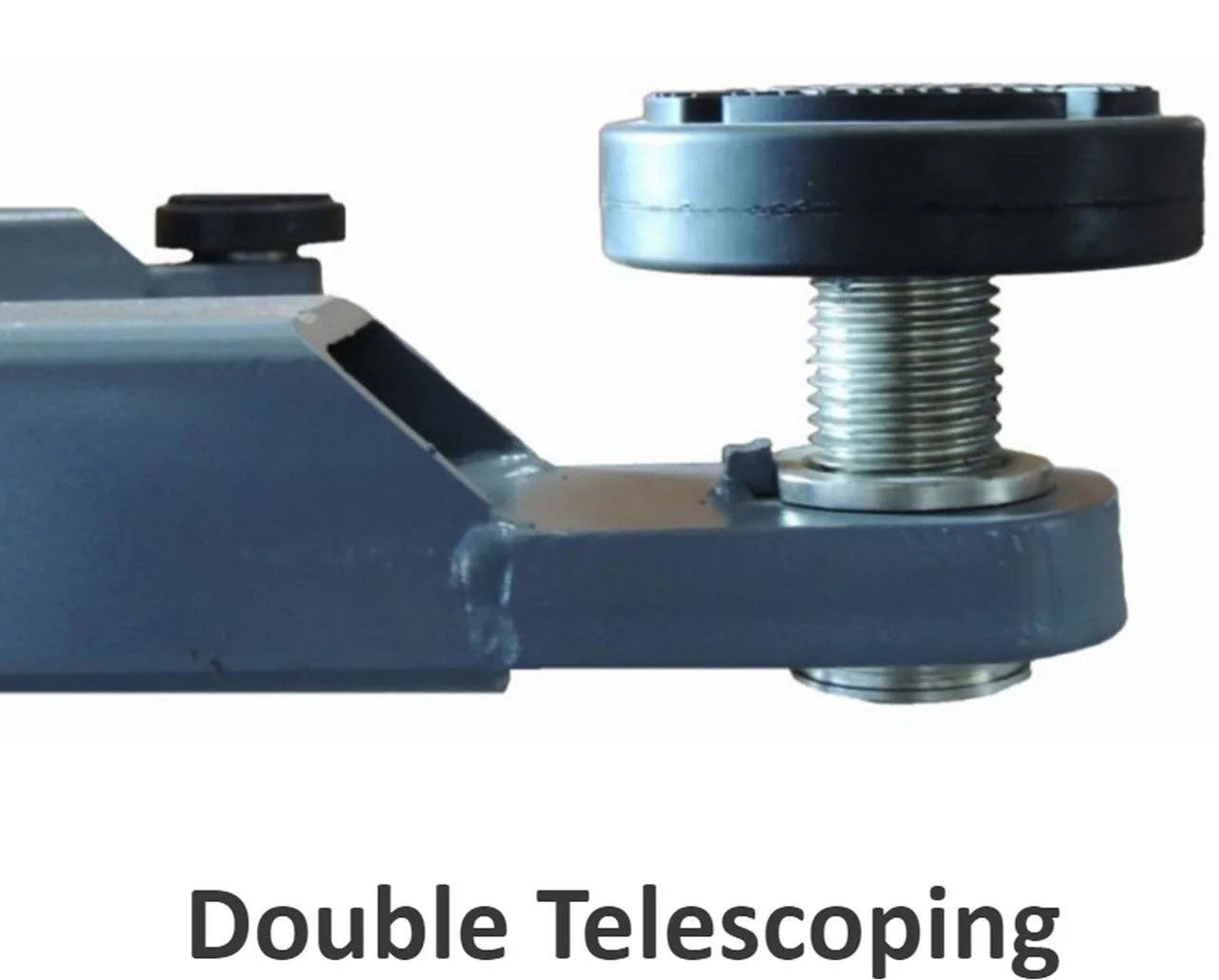

Double telescoping screw pads used with rubber pads offer 2.5" adjustment

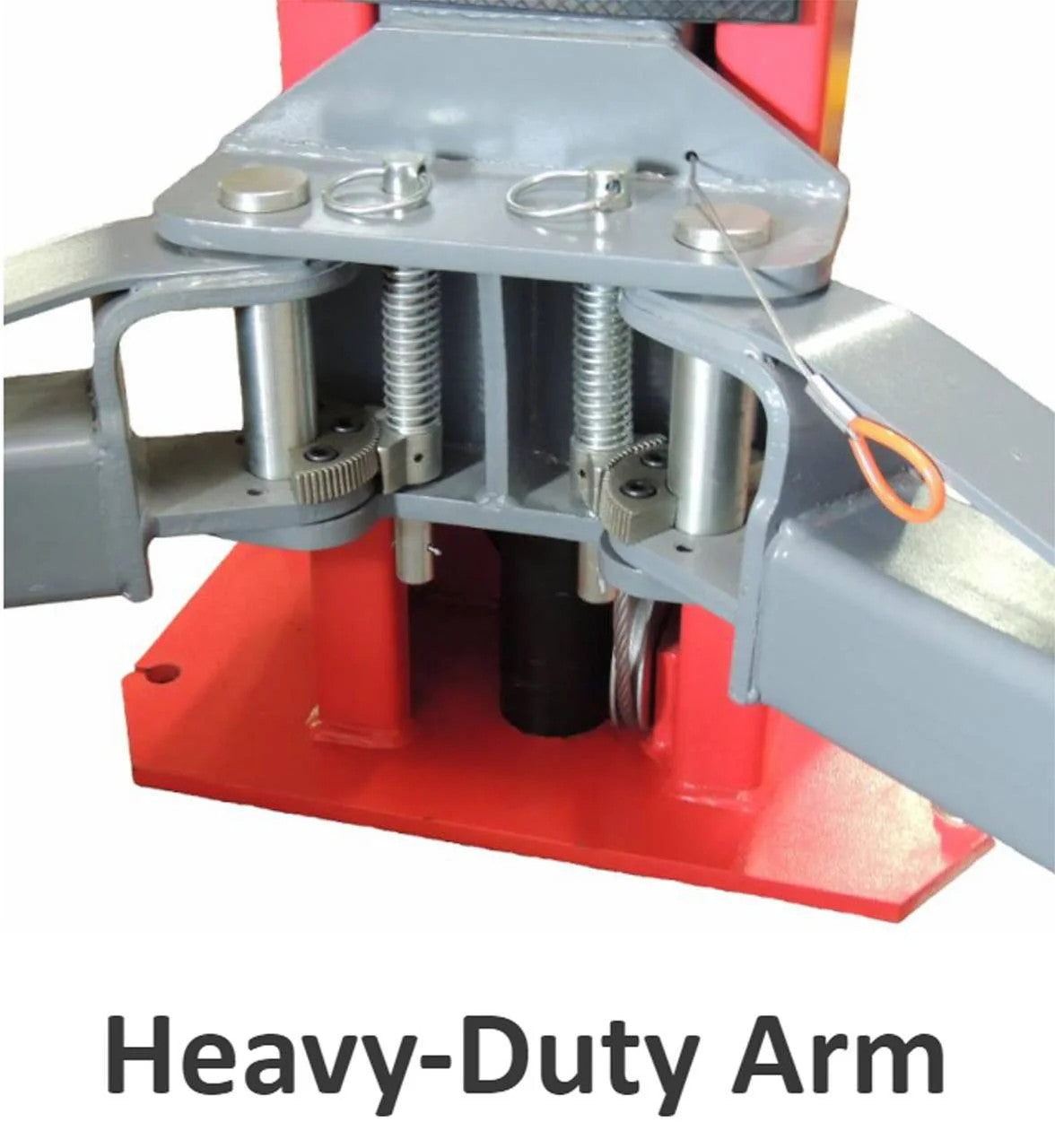

Heavy-duty arm restraint system includes rugged steel gears, pins, and springs
Specs
9,000 lb. capacity
Min pad height: 4"
Max lift height:73"
Overall height: 113"
Cable diameter: 3/8"
Drive thru clearance: 98"
Lifting speed: 50 seconds
Column size: 11.34" x 7.5"
Max load per arm: 2,250 lb.
Width between columns: 108"
Column steel thickness: 6mm
Carriage steel thickness: 6mm
Arm steel thickness: 6mm, 8mm
Overall width w/ power unit: 133"
Arm reach (min/max): 31.5" - 47"
Power: 208-230 Volt / 60hz / single phase
RETURNS
Our supplier does not accept returns on this item
In event of warranty claim, replacement part(s) will be sent
