SWAG 8 Piece "Tube" Dimple Die Set

Description

The SWAG dimple dies are capable of dimpling 3/16" steel.

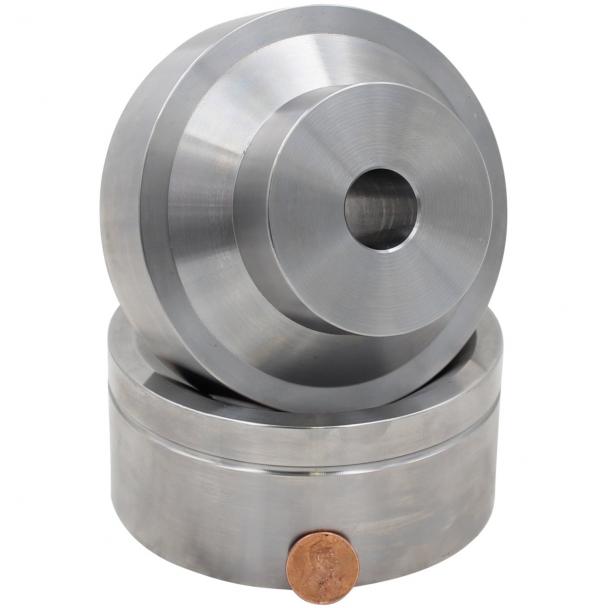

Made in the USA out of domestic steel, these dimple dies come with a lifetime warranty. These dimple dies are CNC machined out of 4140 quenched and tempered chromoly steel that has a tensile strength of 150,000 KSI. Each dimple die has a through hole drilled into both the male and female dies so they can be used in a few different ways.

The overall outside diameter of the dimple dies are as follows:

• Made in the USA
• Tensile strength of 150,000 KSI
• Lifetime free replacement warranty
• Numerous different ways to use these dies
• CNC machined out of 4140 quenched and tempered chromoly steel

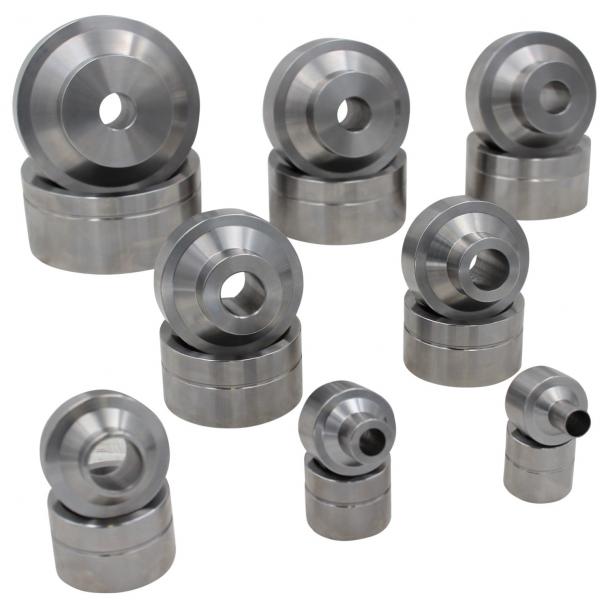

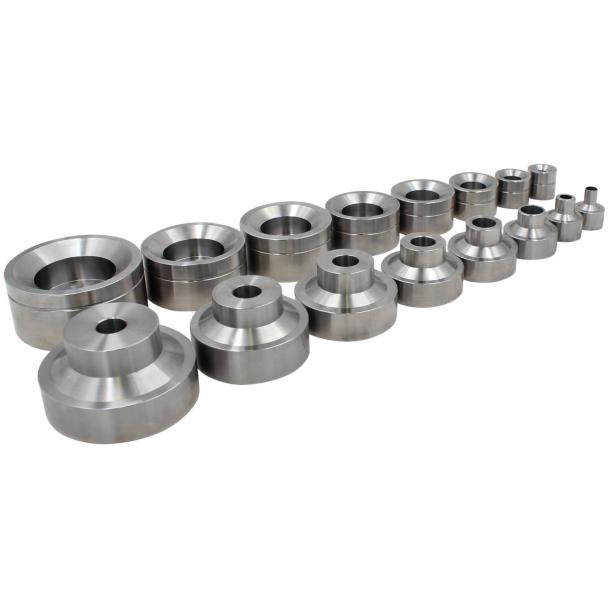

Specs

• .500" dimple die OD = 1.20"
• .750" dimple die OD = 1.45"
• 1.00" dimple die OD = 1.95"
• 1.25" dimple die OD = 2.40"
• 1.50" dimple die OD = 2.70"
• 1.75" dimple die OD = 3.17"
• 2.00" dimple die OD = 3.40"
• 2.50" dimple die OD = 4.20"
